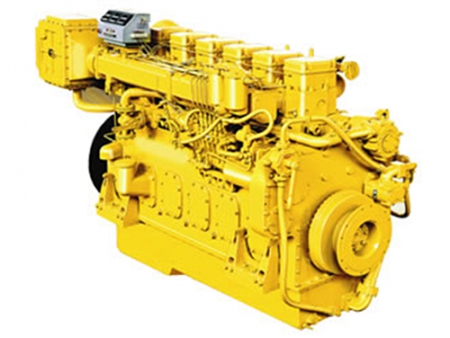

WD 6-Cylinder In-Line High Speed Diesel Engine

Request a Quote

About Us: http://jinanengine.com/4-6-Cylinder.html

Industrial Diesel Engine
Power: 235-353kW
rpm: 1500/1800

The WD 6-Cylinder In-Line High Speed Diesel Engine is equipped with a Cummins turbocharger and German Bosch high-pressure oil-pump to deliver a strong power and reliable performance. The high-quality diesel engine is ideal for a wide range of applications, including generator units, power stations, pumping units and other industrial engineering machines.

Features

The assembled crankshaft features a high rigidity, high strength, excellent torque transmission and a compact design.
The turbocharge intercooler technology increases the diesel engine’s gas tightness and dynamic performance.
A low vortex and large flow cylinder head in combination with Bosch type-P fuel injection pump and Cummins Holset turbocharger allow for strict control of the highest combustion pressure and meet economical requirements, emission standards (GB20891) and noise standards (GB14097).
The plate-fin transmission oil cooler provides a better cooling performance.
The fuel system uses an electron speed regulator to allow the diesel engine to easily connect to other devices in a parallel manner.
Certification: ISO9001, ISO14001, OHSAS18001

Parameters

Model	Standby (kW)	Rated Speed (rpm)	Rating (kW)	Bore × Stroke (mm)	Displacement (L)	Minimum Fuel Consumption (g/kW.h)
WD129TAD23	259	1500/1800	235	135×150	12.9	198
WD129TAD25	284	1500/1800	258	135×150	12.9
WD135TAD28	308	1500/1800	280	138×150	13.5
WD145TAD30	340	1500/1800	309	138×160	14.5
WD145TAD33	373	1500/1800	339	138×160	14.5
WD145TAD35	388	1500/1800	353	138×160	14.5

Application

Silent generator
Open generator
Mobile power station
Mobile light tower

Wuxi Power Engineering Co., Ltd. (Wandi) has more than six decades of experience in large marine and land diesel engines. Known for quality, durability and reliability, we are committed to the idea that every component, piece and part of the engine contributes to the overall performance. As a leader of high speed power solutions in China, we are able to offer the most extensive of high speed engines for power generation. Wandi diesel engines are specially designed for marine applications, which are widely used by many boating and marine industry manufacturers.
