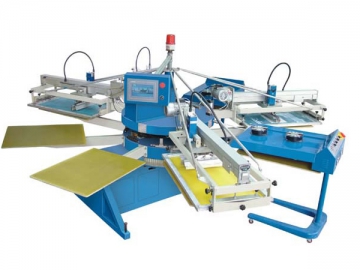

The SPE series automatic screen printer comes with intelligent micro-processor, touch screen, and servo motor drive system, achieving high printing stability and ±0.05mm color registration tolerance. To ensure minimal maintenance and easy operation, each parts of the screen printing machine is strictly tested before installation.

Features
1. The textile printing machine is driven by servo motor.
2. The free turntable rotation realizes optimal color registration.
3. Electrically controlled printing and flood bar speed.
4. For optimal printing effect, the printing speed, stroke and angle are adjustable.

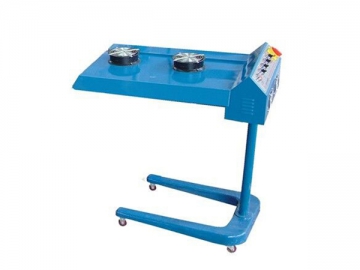

5. A movable dryer can be installed inside the print station of the SPE series automatic screen printer as necessary.

Technical Parameters
Model SPE-104/8 SPE-156/10 SPE-158/12
Print Color/Station 4-6/8 4-8/10 6-10/12
Max. Image Area 500×700mm 500×700mm 500×700mm
Pallet Size 600×800mm 600×800mm 600×800mm
Frame Size 680×980mm 680×980mm 680×980mm
Air Consumption ≥0.8MPa ≥1.0MPa ≥1.0MPa
Output 700pcs/h 700pcs/h 700pcs/h
Power 2.0kW 2.0kW 2.9kW
Dryer Power 13.5kW 13.5kW 13.5kW
Size Φ4000×1650mm Φ4800×1850mm Φ5000×1850mm
Weight 1500kg 2000kg 2200kg
