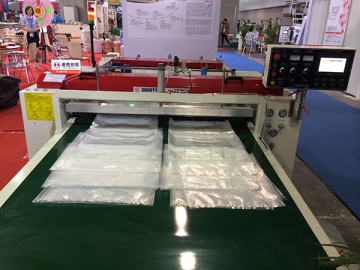

CW-1400FB High Speed Bottom Seal Bag Making Machine with Fly Knife System

CW-1400FB High Speed Bottom Seal Bag Making Machine with Fly Knife System
CW-1400FB High Speed Bottom Seal Bag Making Machine with Fly Knife System
CW-1400FB High Speed Bottom Seal Bag Making Machine with Fly Knife System
CW-1400FB High Speed Bottom Seal Bag Making Machine with Fly Knife System
CW-1400FB High Speed Bottom Seal Bag Making Machine with Fly Knife System
Request a Quote

Brief introduction
Heavy duty bottom seal bag making machine is specialized in producing bags with high thickness.

Feature
1. Newly-designed flying knife cutting system, easy to exchange the cutting blade (patent)
2. Double electric heating wire sealing design, sealing well for thick material (patent)
3. The entire stack, the entire output (patent)
4. Able to make multi-lane non-printed bag

Optional device
Hanger hole puncher device
V type sealing device
Surface friction unwinding device
Double servo feeding for producing double lane printed bag

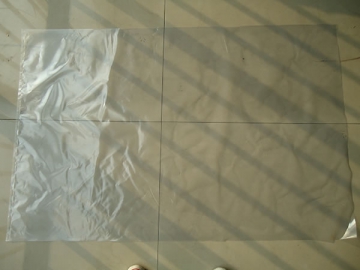

  • Flat bag

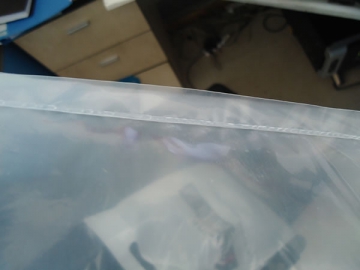

  • Sealing line
  • Unwinder
  • Conveyor table
Technical parameter
Type CW-1000FB CW-1200FB CW-1400FB CW-1600FB
Bag making length 200-3000mm 200-3000mm 200-3000mm 200-3000mm
Bag making width 900mm 1100mm 1300mm 1500mm
Mechanical speed 80pcs/min 80pcs/min 80pcs/min 70pcs/min
Film thickness (mm) 0.04×2-0.25×2 0.04×2-0.25×2 0.04×2-0.25×2 0.04×2-0.25×2
Total power 7.5KW 8KW 9KW 10KW
Machine weight 1800kg 2000kg 2100kg 2200kg
Machine dimension 6000X1800X1300mm 6000X2000X1300mm 6000X2200X1300mm 6000X2400X1300mm
Air compressor 6HP 6HP 6HP 6HP

Related names
Bottom sealing bag making machine
Flying knife cutting bag making machine
Plastic bag making machinery
Bag machinery
Bottom seal bag making machine
Heavy duty bag making machine
Industrial bag making machine
