Stage Lighting Waterproof Spot LED Light Bar Code SS361XALM Stage Light
Request a Quote
Characteristics
- Touch-key
- 16Bit gray scale
- Buttons protection setting
- Multiple DMX control modes
- Support DMX512 control
- New innovational HSIC color mixing system
- Selection and adjustment of multiple color temperature
Technical Specifications
- Optical System
- Light source: 112x30W (RGBAL)
- Optical angle: 25° (40°, 40°x20°, 60°x20°optional)
- Color temperature: 1800k-8000k
- Color rendering index: ≥90Ra
- CQS: ＞90
- Electrical Connections
- Input voltage: 100-240VAC,50/60Hz
- Rated power: 320W
- Drive current: 600mA
- Power line: Power input and output, signal input and output, RJ45 input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Natural radiation
- RTCP: DMX512, RDM, ARTNET
- Display: On board control, custom mode, 0-25Hz strobe
- Channel mode: HSIC/7CHS, SSP/8CHS, TOUR/12CHS, TR16/18CHS, PIXEL.1/39CHS, PIXEL.2/63CHS
- Appearance
- Size: 1013x230x255mm
- Weight: 18kg
- Shell: Extruded aluminum, die-cast aluminum
- Color: Black
- Working Environment
- Ambient temperature: 0℃~45℃
- IP Rating: IP POWER Socket, IP DMX XLR, IP65
- Approvals
- Certification
- CE, MET

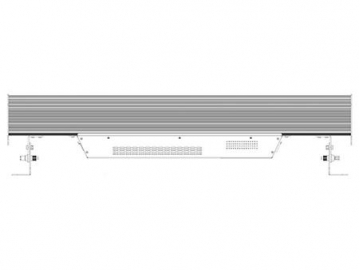

Dimensions
Illumination Contours

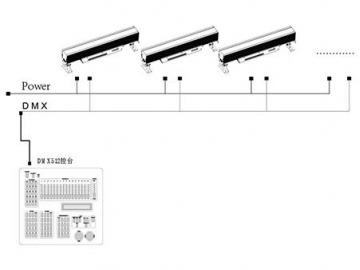

Installations
Optional Accessories
