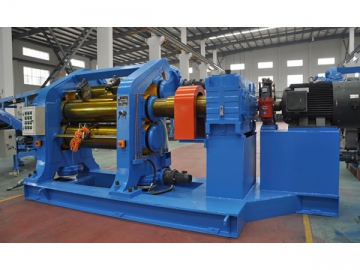

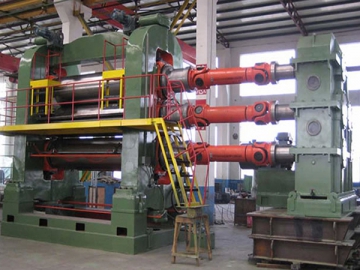

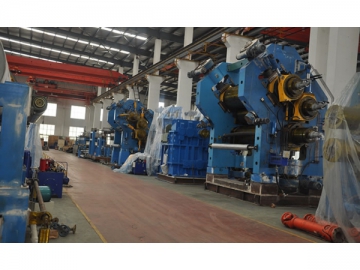

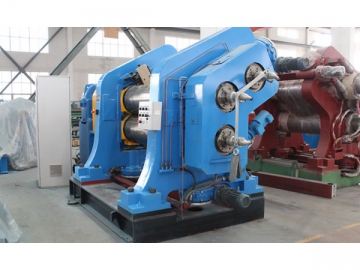

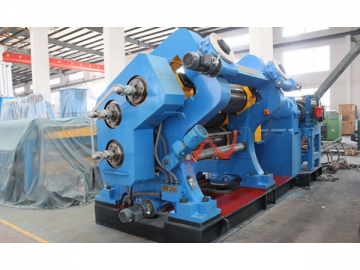

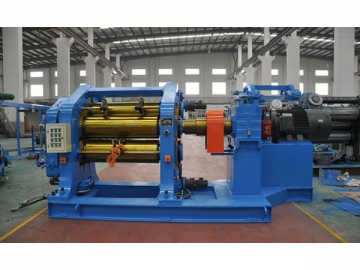

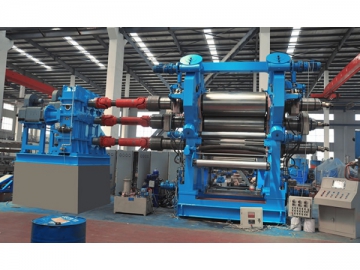

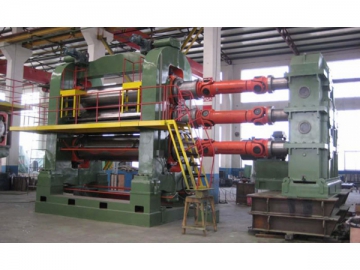

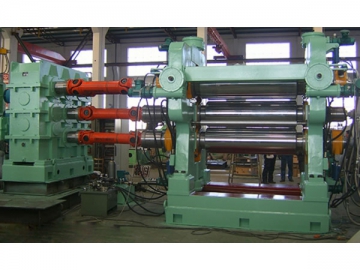

Three Roll Rubber Calender

Three Roll Rubber Calender
Three Roll Rubber Calender
Three Roll Rubber Calender
Three Roll Rubber Calender
Three Roll Rubber Calender
Three Roll Rubber Calender
Three Roll Rubber Calender
Three Roll Rubber Calender
Three Roll Rubber Calender
Three Roll Rubber Calender
Request a Quote
About Us: http://huahanmachine.com
Specifications
Item Model XY-3I(Γ)
230x630 		XY-3I(Γ)
252x720 		XY-3I(Γ)
360x1120 		XY-3I(Γ)
400x1200 		XY-3I(Γ)
450x1400 		XY-3I(Γ)
550x1500 		XY-3I(Γ)
610x1730 		XY-3I(Γ)
710x1800 		XY-3I(Γ)
710x2130 		XY-3I(Γ)
800x2500 		XY-3I(Γ)
860x2500
Roll
Diameter 		mm 230 252 360 400 450 500 610 710 710 800 860
Roll Working Length mm 630 720 1,120 1,200 1,400 1,500 1,730 1,800 2,130 2,500 2,500
Roll Speed
Ratio
1:1:1 1:1:1 1:1:1 1:1:1 1:1:1 1:1:1 1:1:1 0.5~1 1:1:1 0.5~1 0.5~1
1:1.2:1 0.733:1:1 1:1.383:1.383 1:1.5:1 1:1.5:1 1:1.4:1

0.733:1:0.733 1:1.383:1


Middle Roll Speed m/min 0.8-8 2-15.9 3-20 3-26.39 2.62-26.2 3~30 5.4-54 4-40 8-50 3-30 4-40
Nip Adjusting Range m 0-7 0-10 0-10 0-10 0-10 0-10 0-20 0-30 0-20 0-30 0-30
Minimum
Product
Thickness 		mm 0.2 0.2 0.2 0.2 0.2 0.2 0.15 0.2 0.15 0.2 0.5
Product
Width 		mm 500 550 920 1,200 1,250 1,300 1,500 1,600 1,900 2,200 2,200
Motor Power KW 7.5 22 45 55 75 110 160 90kwx2 185 132kwx3 132kwx3
110kwx1
Overall Dimensions L mm 3,168 3,950 6,500 6,300 7,320 7,550 7,010 9,950 7,650 11,400 12,000
W mm 890 1,720 1,500 1,500 2,200 2,400 3,950 3,050 4,560 3,200 3,200
H mm 1,830 1,210 2,440 2,440 2,900 3,800 3,730 4,540 4,080 5,050 5,100
Gross Weight t ~3 ~5.5 ~14 ~18 ~21 ~35 ~42 ~90 ~67 ~110 ~130
