Flexo Printing Press
Request a Quote
The woven bag printing press is ideal for printing on PP and PE woven bags, and is capable of performing quality printing of characters and patterns in 4 simultaneous colors through photoelectric control.

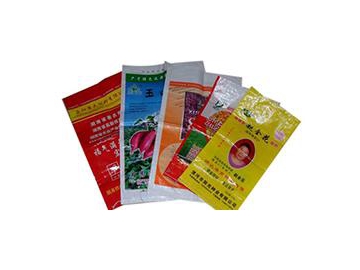

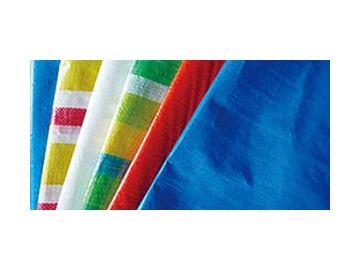

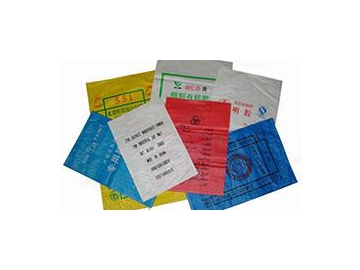

Applications: feedbag, fertilizer woven bag, cement woven bag, etc.
Technical specifications
| Model | S-YDJ-800III | S-YDJ-800IV | S-YDJ-800V |
| Print color | 3 color | 4 color | 5 color |
| Printing styles | Flexo, sheet by sheet, single side printing/optional dual side printing | Flexo, sheet by sheet, single side printing/ optional dual side printing | Flexo, sheet by sheet, single side printing/ optional dual side printing |
| Max. Size of printed material (W×L) | 750×1200mm | 750×1200mm | 750×1200mm |
| Max. Print size (W×L) | 650×1150mm | 650×1150mm | 650×1150mm |
| Thickness of plate and tape | 4.0 - 6.0mm | 4.0 - 6.0mm | 4.0 - 6.0mm |
| Print capacity* | 1500 - 3000 tapes/h | 1500 - 3000 tapes/h | 1500 - 3000 tapes/h |
| System installed power | 2.2kw | 3.0kw | 4.0kw |
| Overall dimension (L×W×H) | 3250×1310×1300mm | 3840×1310×1300mm | 4430×1310×1300mm |
| Model | S-YDJ-1350 | S-YDJ-1500 | S-YDJ-2000 |
| Print color | 2 - 4 color (optional) | 2 - 4 color (optional) | 2 - 4 color (optional) |
| Printing style | Flexo, sheet by sheet, side printing | Flexo, sheet by sheet, side printing | Flexo, sheet by sheet, ide printing |
| Max. Size of printed material (W×L) | 1350×1850mm | 1500×2200mm | 2000×2200mm |
| Max. Print size (W×L) | 1000×1600mm | 1150×2000mm | 1500×2000mm |
| Thickness of plate and tape | 4.0 - 6.0mm | 4.0 - 6.0mm | 4.0 - 6.0mm |
| Production capacity* | 200 - 1200 tapes/h | 200 - 1200 tapes/h | 200 - 1200 tapes/h |
| System installed power | 3.0kw | 4.0kw | 5.5kw |
| Overall dimension (L×W×H) | Depending on actual value | Depending on actual value | Depending on actual value |
