Stage Lighting LED Profile Spot Code SS857SWT/SCT Stage Lighting
Request a Quote
Characteristics
- Master slave/interconnected multi - machine control
- Support DMX512 control
- Multiple DMX control modes
- Over-temperature protection
- Gray scale level 16 bits
- Frequency flashing function
- Password protected keyboard
Technical Specifications
- Optical System
- Light source: 250W LED
- Color temperature: 3200K, 5600K
- Color rendering index: ≥90Ra
- CQS:＞90
- Optical angle: 15°-30°
- Electrical Connections
- Input voltage: 100-240VAC, 50/60Hz
- Rated power: 240W
- Drive current: 1.6A
- Power line: Power input and output, signal input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Forced convection
- RTCP: DMX512, RDM
- Display: On board control, 0-25Hz strobe
- Channel mode: SIMPLE(5CHS), MODE 16BIT(8CHS)
- Appearance
- Size: 648x344x273mm
- Weight: 16kg
- Shell: Die-casting aluminum
- Color: Black
- Working Environment
- Ambient temperature: -20℃ ~45℃
- IP Rating: IP65
- Approvals
- Certification
- CE, MET

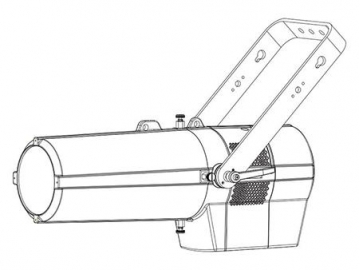

Dimensions
Illumination Contours

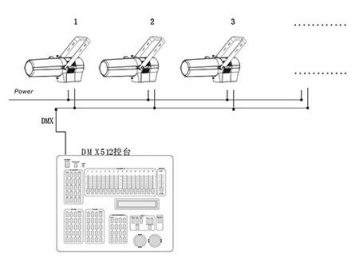

Installations
Optional Accessories
