CP-500RT, CP-700RT Trash Bag Roll Making Machine

CP-500RT, CP-700RT Trash Bag Roll Making Machine
CP-500RT, CP-700RT Trash Bag Roll Making Machine
CP-500RT, CP-700RT Trash Bag Roll Making Machine
CP-500RT, CP-700RT Trash Bag Roll Making Machine
Request a Quote

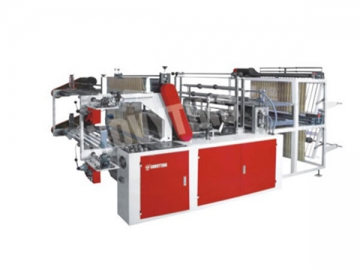

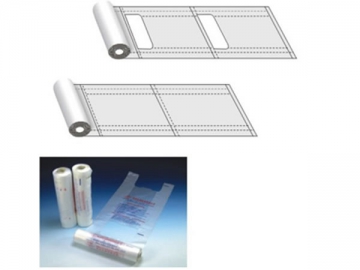

The trash bag roll making machine is fully automatic and is mainly applied to make bottom sealing garbage bag on roll. When equipped with vest punching blade, it is also workable for vest type garbage bag on roll. The center of finished bag on roll can be fitted with or without the paper core. The garbage bag making equipment can be provided in different models for option in accordance with width of bags. Additionally, this range of plastic bag making machinery can be used to make fruit and sweet packing bags which are often used in supermarket, department store as well as other places.

Features
1. The trash bag roll making machine adopts the stepper motor for material feeding. It can also be optionally equipped with the servo motor.
2. The total control panel is characterized by a human-machine interface with the Taiwan made touch screen used for real-time display.
3. The single-chip microcomputer is in charge of the drive system of the whole product.
4. The trash bag roll making machine has a double digital display intelligent temperature controller. All the heating operations are under the control of the solid relay.
5. The product uses the 1.5kW inverter which is bought from Japanese Yaskawa.
6. The film feeding is manipulated by the DC motor.
7. The maximum diameter is 500mm when the single unwinding operation is carried out. Moreover, the unwinding roller is the air shaft.

Technical Parameters
ModelCP-500RTCP-700RT
Bag Making Length200-1200mm200-1200mm
Bag Making Width450mm650mm
Bag Making Speed120 pcs ×2/min120pcs×2/min
Total Power2.5kW4.5kW
Equipment Weight850kg950kg
Equipment Dimension (L ×W ×H)3300 × 1100 × 1500mm3300 × 1300×1500mm

Note: Our company has been making consistent efforts to improve existing products and develop new functions. Therefore, please understand that if you are not given the further notice concerning the changes of technical specifications, performance features as well as appearance.
