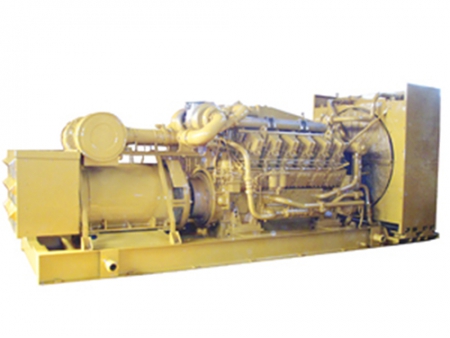

3000 B3000-Diesel Generating Set (700-1200KW)
Request a Quote
Description
- A newly-designed product based on our 6000-Diesel Generating Set and internationally advanced technology
- Rated frequency: 50HZ
- Net weight: 15000~20200Kg
- Control panel: control power transmission
- Various generators are available for customer's choice
Applications
With the power ranging from 700 KW to 1200KW, two or more diesel generating sets can be used to form a power station.
Click Here to
Specification of 3000 B3000 Diesel Generating Set
| Set model | Diesel engine model | Generator model | Rated power (KW) | Rated voltage (V) | Rated frequency (HZ) | Overall dimensions L*B*H (mm) | Net weight (Kg) |
| 700GF2 | A8V190ZL | 1FC6502-4LA92-Z | 700 | 600/480 | 50 | 5450×2252×2738 | 15800 |
| 800GF5 | A12V190ZL-2 | 1FC6566-6LA92-Z | 800 | 600/480 | 50 | 6410×2252×2739 | 17200 |
| 800GF8 | BH12V190ZL-2 | 1FC6566-6LA92-Z | 800 | 600/480 | 50 | 6410×2200×2636 | 17200 |
| 1000GF2 | A12V190ZLD1 | 1FC6504-4LA42 | 1000 | 400/230 | 50 | 6250×2250×2739 | 19300 |
| 1000GF4 | BH12V190ZL-1 | 1FC6566-6LA92-Z | 1000 | 600/480 | 60 | 6381×2200×2636 | 17200 |
| 1000GF5 | BH12V190ZL | 1FC6565-4LA92 | 1000 | 600/480 | 50 | 6381×2200×2636 | 17200 |
| 1000GF21 | A12V190ZL | MTG83 | 1000 | 600/480 | 50 | 6250×2250×2739 | 19300 |
| 1000GF-K | A12V190ZLD1 | 1FC6504-4LA42 | 1000 | 400/230 | 50 | 4975×2180×2303 | 15000 |
| 1100GF | A12V190ZLD | TFW400-3-4-118 | 1100 | 6300 | 50 | 6651×2180×2739 | 20200 |
| 1100GF2 | A12V190ZLD1 | 1FC6506-4LA42 | 1100 | 400/230 | 50 | 6250×2250×2739 | 19300 |
| 1100GF3 | B12V190ZL | 1FC6506-4LA42 | 1100 | 400/230 | 50 | 6381×2200×2636 | 17200 |
| 1200GF | BH12V190ZL | 1FC6566-4LA92 | 1200 | 600/480 | 50 | 6381×2200×2636 | 17200 |
Main Electrical Performance Data
| Voltage | Frequency | ||||||
| Steady-state adjusting rate | Transient-state adjusting rate | Stable time | Fluctuation rate | Steady-state adjusting rate | Transient-state adjusting rate | Stable time | Fluctuation rate |
| ±2.5% | ﹣15%~+20% | 1.5S | 0.5% | 5% | ±10% | 7S | 0.5% |
| Voltage regulation range: no-load voltage regulation: 95~105% of rated voltage | |||||||
Control Panel
The control panel of the diesel generating set is mainly used to control the power transmission of generator sets, providing protections for lack-voltage, over-current, automatic speed regulation and reverse power. Meanwhile, it also can monitor such parameters as revs, water temperature, oil temperature, oil pressure and exhaust temperature, with a sound-light alarming output system.
