Single Post Ground Mount Solar Racking System
Request a Quote

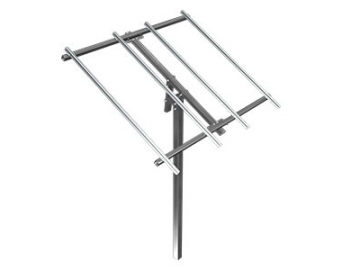

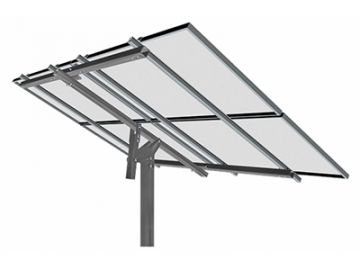

The MRac single post ground mount solar racking system is a product applicable for large commercial or public utility electricity power plants. Due to the single-post design, this product can be adapted to all kinds of environments, especially in uneven environments like hills and knolls. Such solar racking system can hold 6 to 10 solar panels according to the demands of the project. All accessories are made using hot-dip galvanizing steel and aluminum alloy to achieve a longer working life.
- Ground-Mounted System
- Mounting Angle
- Ground Clearance :500~2000mm
- Applicable Solar Panels: framed panels & frameless panels
- Solar Panel Layout: horizontal panel installation & vertical panel installation
- Quality & Warranty
| Mount Location | Ground | Design Standard | AS/NZS 1170 , DIN 1055 , JIS C8955 2017 , |
| Mount Base | Piling , Concrete Foundation , Ground Screw Foundation | International Building Code IBC 2009 | |
| Mount Angle | 10-60° | California Building Code CBC 2010 | |
| Wind Load | 32m/s | Rack Material | Q235B (Hot-Dip Galvanizing) , Al6005-T5 (Surface Anodic Oxidation） |
| Snow Load | 1.3KN/m2 | Fastener Material | SUS304 & Zn-Ni Alloy & Hot-Dip Galvanizing |
| Ground Clearance | 200-2000mm | Mounting Accessories Material | Al6005-T5 (Surface Anodic Oxidation） |
| Applicable Solar Panels | Framed Panels & Frameless Panels | Column color | Natural Silver or According to Customer |
| Solar Panel Layout | Horizontal Panel Installation & Vertical Panel Installation | Warranty Period | 15 years |
- TUV Test
- Patent
- AS NZS 1170 Certificate
- SGS Material Analysis
- ISO 9001 Certification
- SAAEA

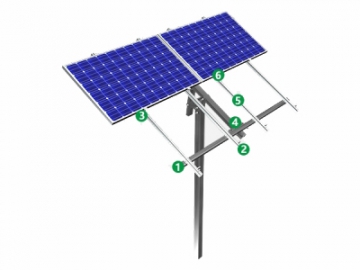

1.C Clamp Kit 2.End clamp 3.U25 Mid Clamp 4.Splice for Rail 5.Rail 45 6.Splice for Rail 45
Installation StepsRelated products
