SGDP Industrial Hot Air Oven
- SLDG Industrial Hot Air Oven
- SLCP Industrial Hot Air Oven

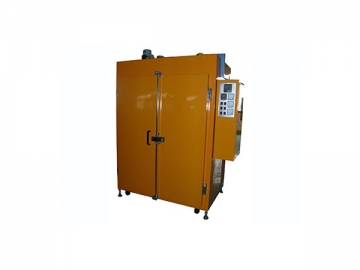

SGDP is our most universal drying oven with a maximum temperature of 350 ℃. Equipped with a PID temperature controller with LED display, time and temperature is easy to monitor and adjust.
The air passage can be designed based on customer needs, such as horizontal airflow (front to back), vertical airflow or horizontal airflow (side to side). The forced air circulation system helps unify the temperature so that this oven is suitable for OLED flexible printed circuit, printed circuit board, capacitor and transformer after dip coating. If anti-oxidation is required, an inert gas inlet port is available to refill nitrogen.
The standard configurations are fan, heating element and controller, but the panel,working chamber and doors can be customized according to demands. The layer amount and shape of chamber, the material of panel and surface coat are free to choose.
Model | Temperature Range(℃) | Temperature Fluctuation (℃) | Temperature Uniformity(℃) | Heating Power (kW) | Voltage(V) | Internal Dimensions H×W×D(mm) | External Dimensions H×W×D(mm) |
SLG-1 | Room temperature~250 | ±2.0 | 4.5 | 180 | 220 | 800×600×500 | 1520×860×750 |
SLG-2 | 9 | 750 | 380 | 1000×1200×600 | 1900×1460×850 | ||
SLG-3 | ±3.0 | 12 | 1200×1400×800 | 2100×1930×1050 | |||
SLG-4 | 18 | 750×2 | 1500×1600×800 | 2400×2130×1050 | |||
SL-CP-1 | Room temperature~300 | ±2.0 | 4.5 | 180 | 380 | 800×600×500 | 1600×900×750 |
SL-CP-2 | 9 | 750 | 1000×800×800 | 1950×1100×1050 | |||
SL-CP-3 | Room temperature~350 | ±5.0 | 36 | 750×4 | 1800×1000×1400 | 2750×1300×1700 |
