This product has been discontinued and removed from our shelves.

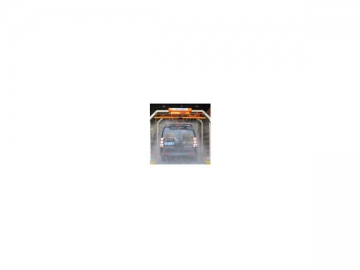

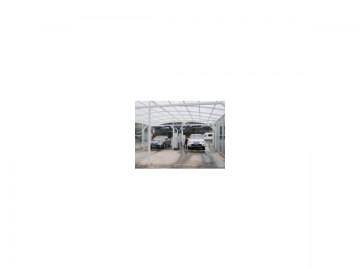

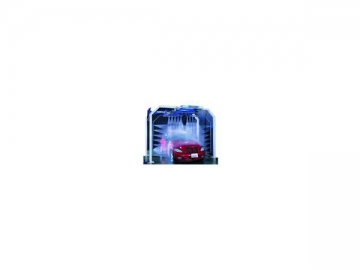

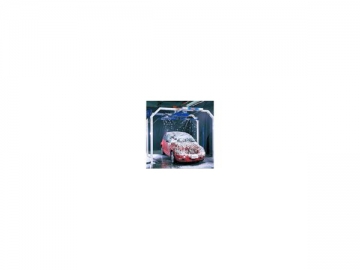

The Risense CH-200 type automatic car wash equipment occupies less space to maximize the usable area of car wash facilities. The dual wash arms of the high-pressure touchless water washing machine allows 360° rotation to cover and spray the front, rear and sides of the vehicle, so that it can be effectively rinsed. Because our commercial vehicle wash machine features a side water spray system and overhead spray system, the cars are washed with precision and completely while minimizing water and detergent consumption. The CH-200 automatic car wash machine can wash 12 to 15 cars per hour. Following are parameters of this high-pressure touchless car wash equipment.

Parameters
Model CH-200A (Silenced)
Dimension L*W*H :3.95m×3.8m×2.69m
Width down to 3.45m
Assembling Range L*W: 6300mm×4500mm
Moving Range L*W: 6200mm×4500mm
Voltage Voltage AC380V50Hz Capacitance10KVA Total Power 7.5KW
Water Supply DN25mm Water flow rate≥100L/min
Air Pressure 0.75~0.9Mpa Air flow rate≥0.1m³/min
Ground Flatness Deviation≤10mm
Applicable Vehicles Sedan/jeep/minibus within 10 seats
Applicable Car Dimension L*W*H :5.2m×2.3m×2.3m
Washing Time 1'30''/car (Not including the manpower)
Advantages
  • Less occupied area and simpler assembly;
  • High working efficiency: 12-15 cars/h;
  • 360° rotating spray arm washes the car entirely
  • Reduction of overhead expense cost and labor cost
Configurations
Standard Devices Optional Devices
Two sides water spray system Undercarriage wash system
Shampoo spray system Water-repellent protective coating with high gloss finish
Water and wax spray system
Voice prompt
Car entry guide rail apparatus
Equipment data intellectualization
Self-diagnose system
